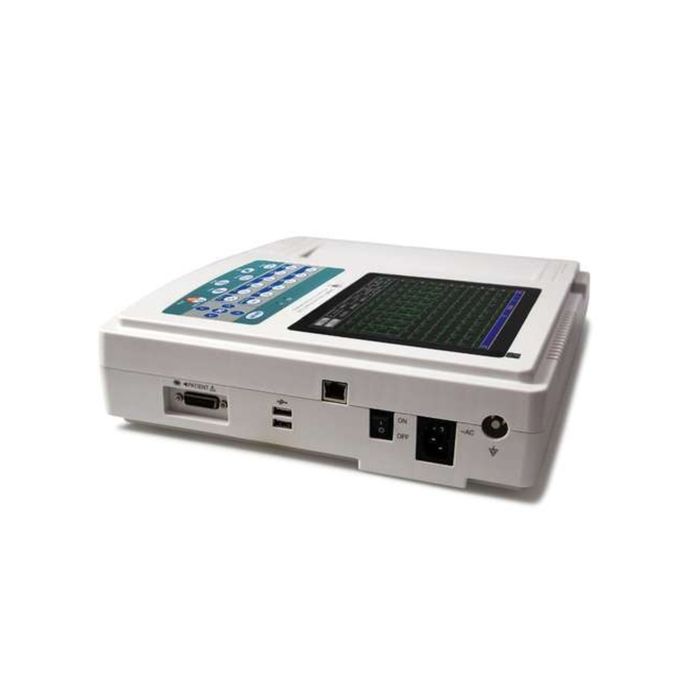

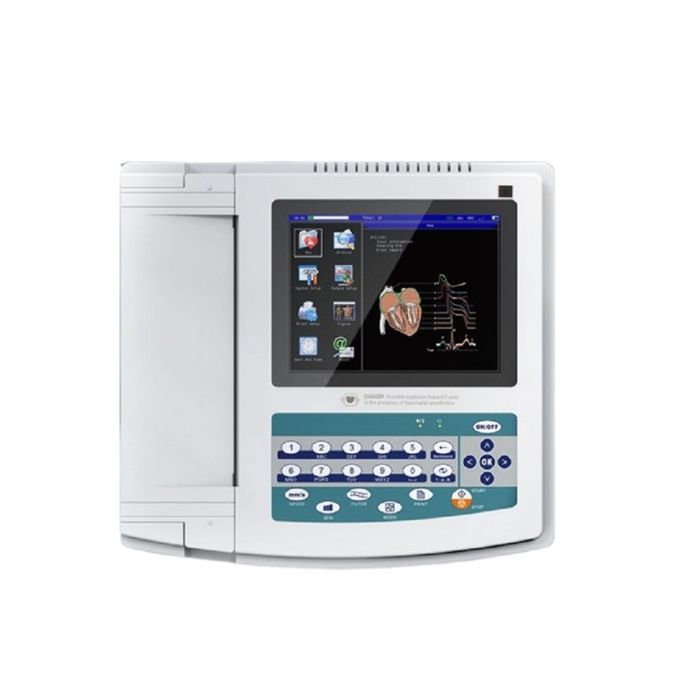

Contec Twelve Channel ECG Machine - 1200G
Sale price
Rs. 46,400.00
Regular price
Rs. 46,800.00
What is in the box
1 x A lead cable, 1 x A limb electrode, 1 x A chest electrode, 1 x A thermal recording paper, 1 x A power cord, 1 x An earth wire, 1 x A user manual
Product Description:
Features:
- Recording and displaying ECG waveform in AUTO/Manual mode measuring and diagnosing ECG waveform parameters automatically prompting for “Leadoff” and “Lack of paper
- Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
- Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
- Multiple printing modes and formats, including auto 12x1, auto6x2+1, auto 6x2+1_H, auto 6x2, auto 6x2_H, auto 3x4+1, auto 3x4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R interval can be printed, waveform length printed can be adjusted, and with time print function, which meets different requirements.
- Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
- With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor's burden.
- Built-in memory stores up to 1000 cases, convenient for case review and statistic.
- Multi-language(Turkish, French, Chinese, English, German, Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian) interface and report.
- In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 300 ECG waveform(commonly, it 3s case), which meets the requirements of visiting a patient at home and body examination.
Sold & fulfilled byMedikabazaar
| Country of Origin | China |
|---|---|
| Screen size | 8 inches |
| Leads | 12 leads |
| Input way | Floating and defibrillation protection |
| Lead | Standard 12 leads(model:BIP0057) |
| Patient leak current | <10µA |
| Input impedance | ≥50MΩ |
| Frequency response | 0.05Hz~150Hz(-3dB) |
| Time constant | Time constant>3.2s |
| CMRR | >60dB, >100dB( Adding filter) |
| EMG interference filter | 35Hz(-3dB) |
| Recording way | Thermal printing system |
| Specification of recording paper | 210mm(W)*20m(L) high-speed thermal paper |
| Paper speed | Auto record: 25mm/s, 50mm/s, error:±5% |
| Paper speed | Rhythm record: 25mm/s, 50mm/s, error:±5% |
| Paper speed | Manual record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error:±5% |
| Sensitivity selections | 2.5,5,10,20,40mm/mV, error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV. |
| Auto record | Record setup according to auto-record format and mode, automatically changing leads, measuring and analyzing. |
| Rhythm record | Record setup according to rhythm record format and mode, automatically measuring and analyzing. |
| Manual record | Record setup according to manual record format, manually changing leads. |
| Measurement parameters | HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P A*is, QRS A*is, T A*is, R(V5) , S(V1) , R(V5)+S(V1) |
| Product safety type | Class I CF applied part; there is defibrillation and pacing protection circuit in it. |
| Enduring polarization voltage | ±300mV |
| Noise level | ≤15µVp-p |
| Fuse specification | 2 pcs φ5*20mm AC time lag; T1.6A/250V(Power supply 220V) |
| Size | 340mm(L)*320mm(W)*85mm(H) |
| Net Weight | 3.2Kg |
